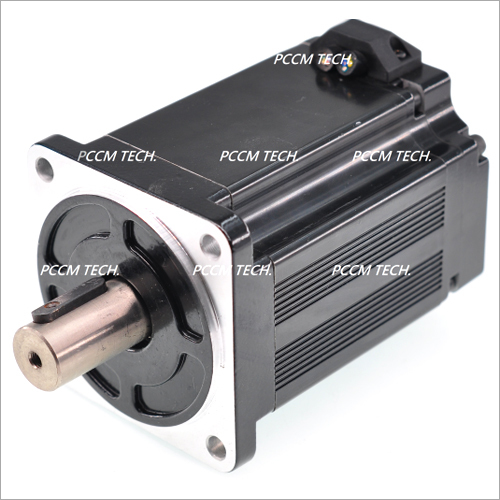

PCCM-SC Series BLDC Motor
Product Details:
- Poles Number 3, 8
- Rated Voltage 48 Volt (V)
- Product Type BLDC Motor
- Speed 3000 RPM
- Color Black
- Click to view more
X
Product Specifications
- BLDC Motor
- 3, 8
- 3000 RPM
- Black
- 48 Volt (V)
Product Description
Specification
| Model Name | SCS63W48VS | SCS1I25W48VS | Model Name | SCS63W4A8VS | SCSI25WA8V5 |
| Number of Phase & Poles | 3/8 | 3/8 | Peak Current (A) | 4.8 | 9.9 |
| Rated Voltage (VDC) | 48 | 48 | Peak Torque (N.m) | 0.6 | 1.2 |
| Rated Power (W) | 63 | 125 | Rotor Inertia (kg.cm) | 0.42 | 0.63 |
| Rated Speed (rpm) | 3000 | 3000 | Torque Constant (N.mA) | 0.125 | 0.121 |
| Rated Torque (N.m) | 0.2 | 0.4 | Torque Constant (V/krpm) | 13.08 | 12.71 |
| Rated Current (A) | 1.6 | 3.3 | Line-Line Resistance (Q) | 1.11 | 0.93 |
| Insulation Class | B | B) | Line-Line Inductance(mH | 0.91 | 0.65 |
